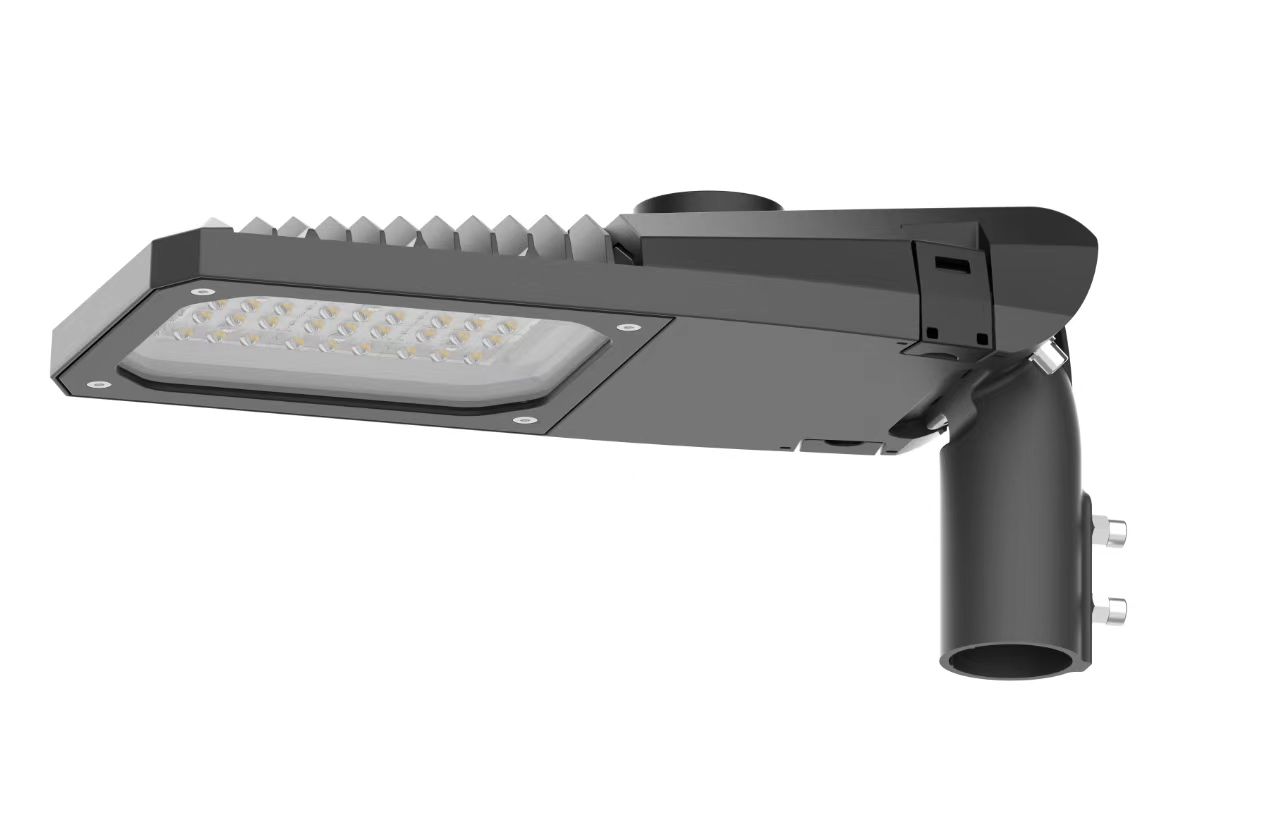

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
| मोडेल कोड | Housing Size mm | म्याच पावर | Lamp Post （mm) | वजन (केजी) | सामानहरू |
| EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
| EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
| EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
| EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
| EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
| Legend: Std = IP66 IK08 | |||||
| Housing Material ：Die-cast Aluminum + Armored Glass | |||||
| कार्य तापमान -35℃~50℃20%~90% HR | |||||
उत्पादन सुविधाहरू
- एल्युमिनियम बडी ADC12 एल्युमिनियम डाइ-कास्टिङबाट बनेको छ, सतहलाई स्प्रे-पेन्टिङद्वारा जंग र रङको निरन्तरता रोक्नको लागि उपचार गरिन्छ।
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- बत्ती पूर्ण र एकीकृत राख्नको लागि पावर आपूर्तिकर्ता बक्स।
- धुलो रोकथाम र स्थिर पानीलाई प्रकाश लामो जीवन समय प्राप्त गर्न रोक्न भेन्टिलेसन डिजाइन।
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.
Led street light housing, Aluminum body street light
शेन्जेन EKI प्रकाश औद्योगिक कं, लिमिटेड हाम्रो आफ्नै विकसित डिजाइन र प्रविधिहरूको साथ एल्युमिनियम डाइ-कास्टिङ एलईडी लाइट हाउसिङको निर्माता हो।
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
एलईडी स्ट्रीट लाइट आवास को विशेषताहरु:
- उच्च स्थायित्व
- उच्च शक्ति
- नवीनतम डिजाइनहरू उपलब्ध छन्
